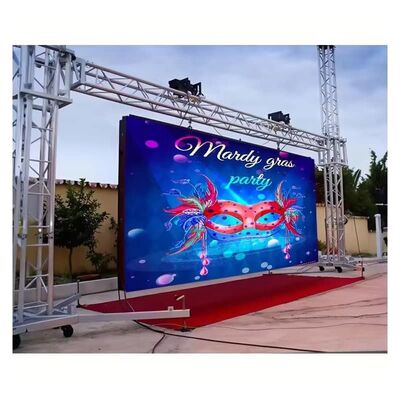

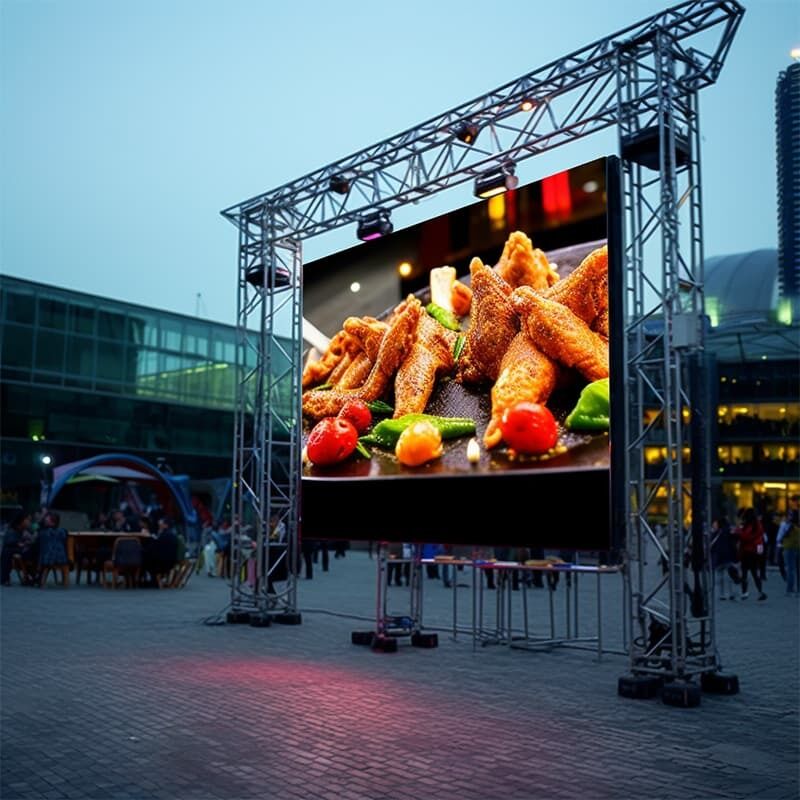

Outdoor Rental LED Screen with IP65 Waterproof Protection for Concerts and Music Festivals, 500×500 or 500×1000 Panels
Detalhes do produto:
| Lugar de origem: | Cantão, China |
| Marca: | LED King |
| Certificação: | CE FCC ISO |
| Número do modelo: | Exterior P2.6 P2.9 P3.91 P4.81 |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 |
|---|---|
| Preço: | $133/pc-$202/pc |
| Detalhes da embalagem: | Caso de vôo |
| Tempo de entrega: | 15 dias |
| Termos de pagamento: | T/T |
| Habilidade da fonte: | De acordo com suas necessidades |
|
Informação detalhada |
|||
| Sistema de controle: | NOVA Estrela | Material do gabinete: | Alumínio fundido |
|---|---|---|---|
| tamanho do gabinete: | 500*500mm, 500*1000mm | Peso do painel: | 7kg |
| Vida útil: | 100.000 horas | Fonte de energia: | AC110V/220V-5V40A |
| Destacar: | Outdoor rental LED screen IP65 waterproof,LED display panel 500x500 concert,Music festival LED screen 500x1000 |
||
Descrição de produto
Outdoor Rental LED Screen with IP65 Waterproof Protection
High-performance 500*500mm or 500*1000mm panels designed for concerts, music festivals, and outdoor events
Technical Specifications
Module Specifications
| Parameter | Specification |
|---|---|
| Module Size | 250mm(W)*250mm(H) |
| Pixel Pitch | 2.6mm / 2.9mm / 3.91mm / 4.81mm |
| Pixel Density | 147,928 dot/㎡ / 118,906 dot/㎡ / 65,536 dot/㎡ / 43,264 dot/㎡ |
| Pixel Configuration | 1R1G1B |
| LED Specification | SMD1415 SMD1921 |
| Pixel Resolution | 96*96 / 86*86 / 64*64 / 52*52 |
| Max Power Consumption | 40W |
| Panel Weight | 0.6KG |
Cabinet Specifications
| Parameter | Specification |
|---|---|
| Cabinet Size | 500*500mm, 500*1000mm |
| Cabinet Resolution | 192*192 / 172*172 / 128*128 / 104*104 |
| Quantity of Panels | 4pcs, 8pcs |
| Hub Connecting | HUB75-E |
| Material | Die-casting aluminum cabinet |
| Maintenance Method | Front/Back service |
| Best Viewing Angle | 170/120° |
| Power Supply | AC110V/220V-5V40A |
| Max Power Consumption | 1200W/㎡ |
| Average Power Consumption | 600W/㎡ |
Technical Signal Index
| Parameter | Specification |
|---|---|
| Driving IC | ICN2153 |
| Scan Rate | 1/24S / 1/21S / 1/16S / 1/13S |
| Refresh Frequency | 3840-7680HZ/S |
| Display Color | 4096*4096*4096 (16bit) |
| Contrast Ratio | 4000:1 |
| Brightness | 4000-4500 cd/㎡ |
| Life Span | 100,000 Hours |
| Best Viewing Distance | 2-30M |
| Operating Temperature | -20℃ to 60℃ |
| Operating Humidity | 10-90% |
| IP Protective Index | IP65 |
Core Features and Advantages
- High Brightness & Anti-Glare Performance: High-brightness LED modules maintain clear, vivid images under direct sunlight for exceptional outdoor visual impact
- Quick Assembly & Modular Design: Lightweight die-cast aluminum enclosures with front/rear maintenance support tool-free rapid assembly and disassembly
- Robust Durability & All-Weather Adaptability: IP65 protection rating ensures dustproof and waterproof performance for stable operation in harsh conditions
- Simple Operation & Effortless Control: Compatible with Nova controllers and intuitive software for real-time content switching and fault monitoring
- Energy Efficiency & Low Operating Costs: Energy-saving drive technology with intelligent brightness adjustment reduces power consumption
Application Scenarios
- Large-scale Performances: Main and side screens for music festivals and concerts displaying artist close-ups, visual effects, and lyrics
- Commercial Launch Events: Core information window for product launches and brand events showcasing details and presentations
- Celebrations & Ceremonies: Dynamic backdrops for weddings, anniversaries, and award ceremonies enhancing event atmosphere
- Cultural Exhibitions: Digital display terminals for auto shows, art exhibitions, and museum displays
- Public Festival Plazas: Large-scale outdoor celebrations including cultural festivals, sports events, and New Year's countdowns
- High-end Business Meetings: Visual backdrops for forums and summits presenting speaker information and topics
- Temporary Information Hub: Emergency command centers, policy dissemination, and event entrance guidance
Certifications
This product has obtained CE, FCC, and ISO certifications, ensuring quality and safety standards.
Packaging & Transport
Standard impact-resistant flight cases with custom branding services ensure safe transport and enhance brand visibility during rental operations.
Example Case
