Hot Sale Outdoor P5 Waterproof Smd Led Display Screen for Soccer Football Stadiums Sports Led Video Wall Panel
Detalhes do produto:
| Lugar de origem: | Cantão, China |
| Marca: | LED King |
| Certificação: | CE FCC ISO |
| Número do modelo: | p5 exterior |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 |
|---|---|
| Preço: | $522/pc |
| Detalhes da embalagem: | caixa de madeira |
| Tempo de entrega: | 15 dias |
| Termos de pagamento: | T/T |
| Habilidade da fonte: | De acordo com suas necessidades |
|
Informação detalhada |
|||
| Sistema de controle: | NOVA Estrela | tamanho do gabinete: | 960mm*960mm |
|---|---|---|---|
| Material do gabinete: | Alumínio fundido | Peso do painel: | 40kg |
| Vida útil: | 100.000 horas | CI: | Chipone ICN2153 |
| Destacar: | P5 waterproof LED display screen,outdoor LED video wall panel,stadium sports LED display screen |
||
Descrição de produto

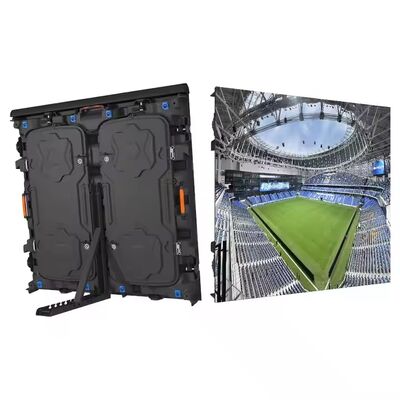

P5 Outdoor Waterproof SMD LED Display Screen
Technical Specifications
| Module Specifications | |
|---|---|
| Module Size | 320mm(W) × 160mm(H) |
| Pixel Pitch | 5mm |
| Pixel Density | 40,000 dots/㎡ |
| Pixel Configuration | 1R1G1B |
| LED Specification | SMD1921 |
| Pixel Resolution | 64 dots × 32 dots |
| Max Power Consumption | 40W |
| Panel Weight | 0.45KG |
| Cabinet Specifications | |
|---|---|
| Cabinet Size | 960mm × 960mm |
| Cabinet Resolution | 192 dots × 192 dots |
| Quantity of Panels | 18pcs |
| Hub Connecting | HUB75-E |
| Material | Die-casting aluminum cabinet |
| Maintenance Method | Front/Back service |
| Best Viewing Angle | 170°/120° |
| Power Supply | AC110V/220V-5V60A |
| Max Power Consumption | 1200W/㎡ |
| Average Power Consumption | 600W/㎡ |
| Technical Signal Index | |
|---|---|
| Driving IC | ICN2153 |
| Scan Rate | 1/8S |
| Refresh Frequency | 3840-7680HZ/S |
| Display Color | 4096 × 4096 × 4096 (16bit) |
| Contrast Ratio | 4000:1 |
| Brightness | 4500-5500 cd/㎡ |
| Life Span | 100,000 Hours |
| Best Viewing Distance | 5-40M |
| Operating Temperature | -10℃ ~ 45℃ |
| Operating Humidity | 10-90% |
| IP Protective Index | IP65 |
Core Features and Advantages
- Ultra-High Brightness: With 4500-5500 cd/㎡ brightness, these displays remain clearly visible even in direct sunlight, ensuring optimal viewing from any angle.
- Exceptional Weather Resistance: IP65 rating provides complete protection against dust and water, enabling 24/7 stable operation in harsh outdoor conditions.
- Superior Motion Performance: High refresh rate (3840-7680Hz) and advanced grayscale deliver smooth, flicker-free visuals perfect for capturing fast-paced sports action.
Application Scenarios
- On-site Interaction: Fan cams, live raffles, and interactive segments to energize crowds and enhance stadium atmosphere
- Sponsor Advertising: High-definition rotation of sponsor ads and promotions during pre-game, halftime, and breaks
- Commercial Promotion: Display venue dining, souvenir shop promotions, and nearby commercial district events
- Public Notices: Critical safety guidelines, evacuation routes, weather warnings, and public service information
- Pre-game Entertainment: Light shows, team promotional videos, and visual spectacles to build audience excitement
Certifications
This product has obtained CE, FCC, and ISO certifications.
Packaging

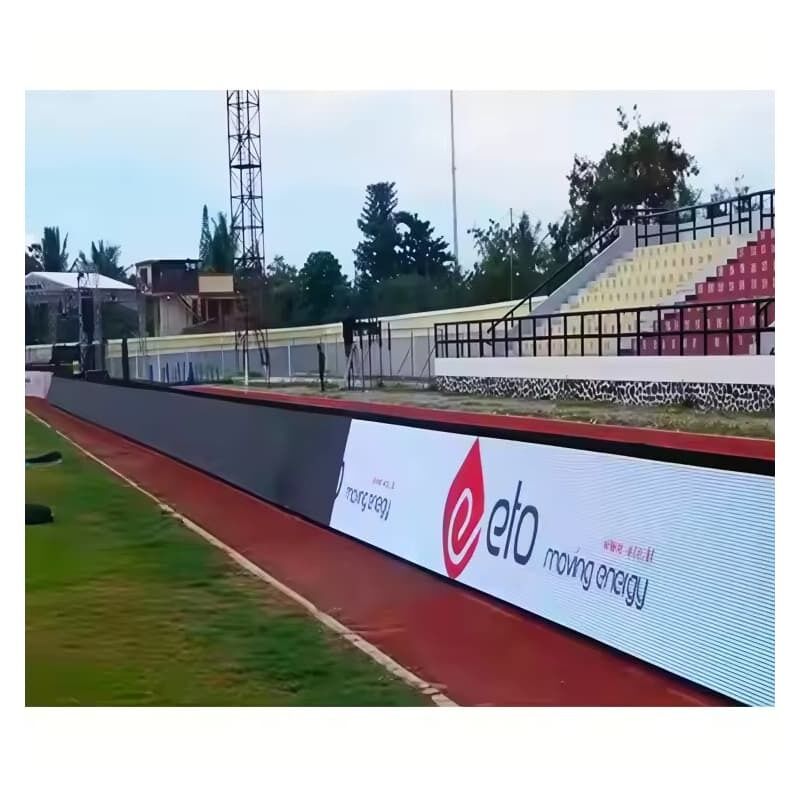

Example Case
