Outdoor LED Display Screen with Long Lifespan 100000 Hours Die Cast Aluminum Cabinet and Full Color Display for Stage Events
Detalhes do produto:
| Lugar de origem: | Guangdong, China |
| Marca: | LEDKING or OEM & ODM |
| Número do modelo: | RO-P3.91 |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 |
|---|---|
| Preço: | $145-165 |
|
Informação detalhada |
|||
| Pitch de pixel: | 3,91mm | Densidade de pixels: | 65536 Dot/m2 |
|---|---|---|---|
| Configuração do pixel: | 1r1g1b | Tamanho do painel: | 250 mm ((W) * 250 mm ((H) |
| Peso do painel: | 0,6 kg | Consumo máximo de energia: | 40W |
| Tamanho do gabinete: | 500*1000mm*90mm, 500*500*90mm | Resolução do gabinete: | 128 ponto * 256 ponto, ponto 128*128 |
| Quantidade de painel: | 8 unidades, 4 unidades | Frequência de atualização: | 1920-3840 HZ/S |
| Brilho: | 4000 cd/m2 | Ângulo de visualização: | 170/120 |
| Temperatura operacional: | -20C°~60C° | Classificação IP: | IP65 |
| Vida útil: | 100000 horas | ||
| Destacar: | Long Lifespan LED Video Wall Panel,Die Cast Aluminum Outdoor LED Display Screen,Full Color Rental LED Display |
||
Descrição de produto

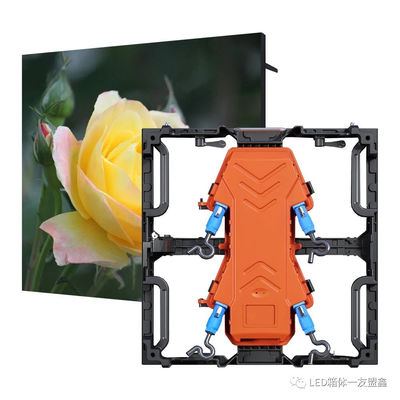

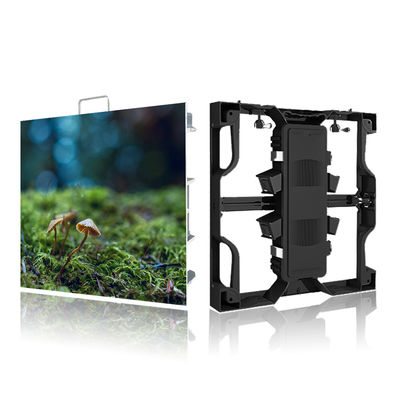

Outdoor P3.91 500×500mm Waterproof Giant P3 Stage LED Video Wall Panel Screen
Product Specifications
| Item | Outdoor P3 | Outdoor P3.91 | Outdoor P4 |
|---|---|---|---|
| Module | |||
| Panel Dimension | 192mm(W) × 192mm(H) | 250mm(W) × 250mm(H) | 256mm(W) × 128mm(H) |
| Pixel pitch | 3mm | 3.91mm | 4mm |
| Pixel Density | 111111 dot/m² | 65536 dot/m² | 62500 dot/m² |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B |
| Specification | SMD1921 | SMD1921 | SMD1921 |
| Pixel resolution | 64 dot × 64 dot | 64 dot × 64 dot | 64 dot × 32 dot |
| Max power consumption | 30W | 40W | 32W |
| Panel weight | 0.55KG | 0.6KG | 0.3KG |
| Item | Outdoor P3 | Outdoor P3.91 | Outdoor P4 |
|---|---|---|---|
| Cabinet | |||
| Cabinet size | 576mm×576mm×90mm, 768×768×90mm | 500×1000mm×90mm, 500×500×90mm | 1024mm×768mm×90mm |
| Cabinet Resolution | 192 dot × 192 dot, 256 dot × 256 dot | 128 dot × 256 dot, 128×128 dot | 256 dot × 192 dot |
| Quantity of panel | 9pcs, 16pcs | 8pcs, 4pcs | 24pcs |
| Hub connecting | HUB75-E | HUB75-E | HUB75-E |
| Cabinet Material | Die-casting aluminum cabinet | Die-casting aluminum cabinet | Die-casting aluminum cabinet |
| Maintenance Method | Front/Back service | Front/Back service | Front/Back service |
| Best viewing angle | 140°/120° | 170°/120° | 170°/120° |
| Screen power supply | AC110V/220V - 5V60A | AC110V/220V - 5V60A | AC110V/220V - 5V60A |
| Max power capacity | 1100 W/m² | 1200 W/m² | 1550 W/m² |
| Average power | 550 W/m² | 600 W/m² | 780 W/m² |
| Item | Outdoor P3 | Outdoor P3.91 | Outdoor P4 |
|---|---|---|---|
| Technical Signal Index | |||
| Driving IC | ICN 2037 / 2153 | ICN 2037 / 2153 | ICN 2037 / 2153 |
| Scan Rate | 1/16S | 1/16S | 1/8S |
| Refresh frequency | 1920-3840 HZ/S | 1920-3840 HZ/S | 1920-3840 HZ/S |
| Display color | 4096×4096×4096 | 4096×4096×4096 | 4096×4096×4096 |
| Brightness | 4500-5000 cd/m² | 4000 cd/m² | 5500-6000 cd/m² |
| Life span | 100000 Hours | 100000 Hours | 100000 Hours |
| Control distance | < 100M | < 100M | < 100M |
| Best viewing distance | 3-30M | 3-30M | 4-40M |
| Operating temperature | -10°C~45°C | -20°C~60°C | -10°C~45°C |
| Operating Humidity | 10-90% | 10-90% | 10-90% |
| IP protective index | IP65 | IP65 | IP65 |
